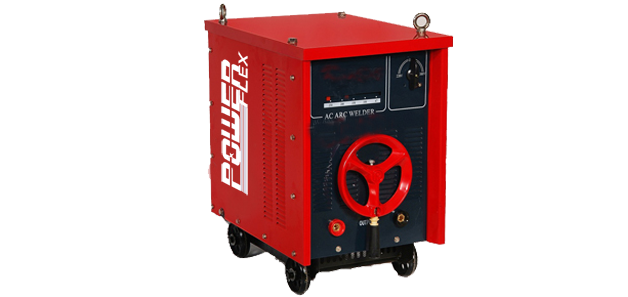

AC WELDING MACHINE - INDUSTRIAL
Product Type BX 1-210 BX 1-250 BX 1-315 BX 1-400BX 1-500BX 1-630
Power Source Voltage (V) 220/440 220/440 220/440 220/440220/440220/440
Rated I/P Capacity (KVA) 15 18.5 23.5 323852.5
No-load voltage (V) 66 66 76 767676
Rated Welding Current (A) 210 250 315 400500630
Current Regulation Range (A) 50-210 50-250 60-315 80-400100-500125-630
Welding Rod Diameter 2-4 2-5 2-6 2.5-83.2-83.2-10
Rated Duty Cycle (%) 35 35 35 353535
|

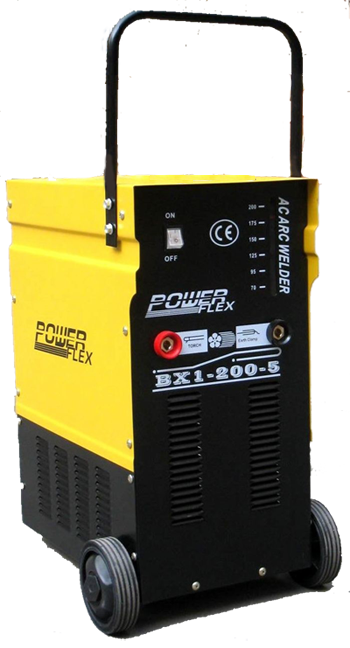

AC WELDING MACHINE (1 PHASE)
Model no BX1-200-5BX1-250-5BX1-315-5
Rated Input Voltage (V) 220 / 440 220 / 440220 / 440
Frequency (Hz) 50/6050/6050/60
Current Range (Amps) 75 - 200 80 - 25090 - 315
Rated Duty Cycle (%) 202020
Input Capacity (KW) 9.51114
Usuable Electrode 2 - 4 2 - 42 - 5
|

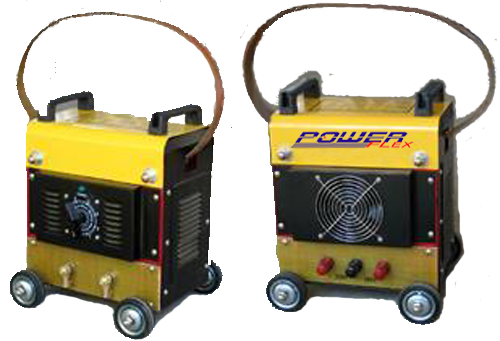

AC WELDING MACHINE (2 PHASE)
Model no BX6-200BX6-250BX6-300
Rated Input Voltage (V) 220 / 440 220 / 440220 / 440
Frequency (Hz) 50/6050/6050/60
Current Range (Amps) 60 - 200 70 - 22080 - 300
Rated Duty Cycle (%) 202020
Input Capacity (KW) 111318
Usuable Electrode 2 - 4 2 - 42 - 5
|
AC WELDING MACHINE - OIL COOLED (1 PHASE)
Model no OC 190OC 250
Rated Input Voltage (V) 230 230
Frequency (Hz) 50/6050/60
Current Range (Amps) 110 - 190 130 - 250
Rated Duty Cycle (%) 2020
Input Capacity (KW) 11.5 14
Usuable Electrode 2.5 - 4 2.5 - 4
|

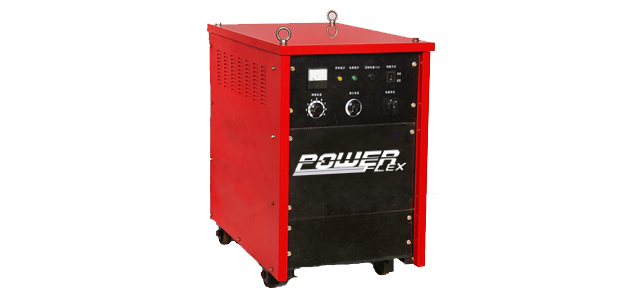

DC WELDING RECTIFIER - COPPER
Product Type ZX 5-400 ZX 5-500 ZX 5-630
Power Source Voltage (V)440 440 440
Rated I/P Capacity (KVA) 24 30 46
No-load Voltage (V) 65 65 65
Rated Welding Current (A) 400
500 630
Current Regulation Range (A) 40-400
50-500 63-630
Diameter of Rod (mm) 3.2-8 3.2-83.2-10
Rated Duty Cycle (%) 60 6060
Features: DC, 3 Phase, Fan Cooled, Wheel, Lifting Hooks, MMA, Anti Stick, Remote Manipulator.
|

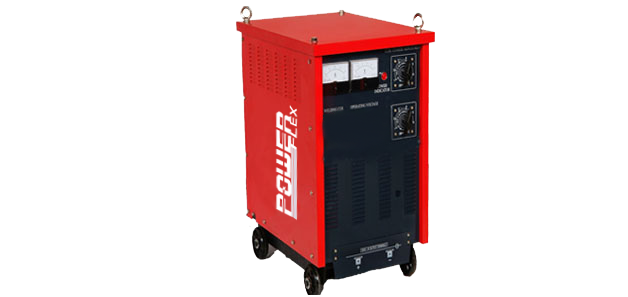

DC WELDING RECTIFIER - ALUMINIUM
Product Type ZX 6-315 ZX 6-400 ZX 6-400
Power Source Voltage (V)3~440 3~440 3~440
Rated I/P Capacity (KVA) 19.5 27 32
No-load Voltage (V) 40-70 45-70 45-70
Rated Welding Current (A) 315
400 500
Current Regulation Range (A) 120-315
120-400 130-500
Rated Duty Cycle (%) 35 3535
Diameter of Rod (mm) 2-6 2.5-83.2-10
Features: MMA, DC, 3 Phase, Wheel, Fan Cooled, Lifting Hooks.
|

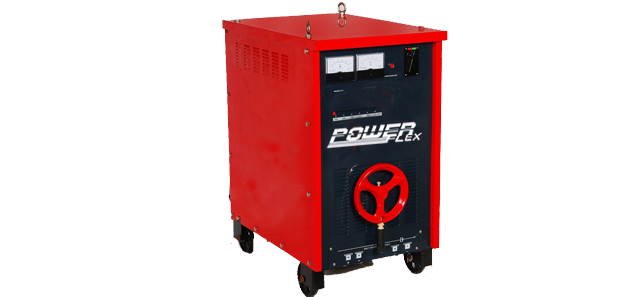

AC/DC WELDING MACHINE [2 PHASE]
Product Type ZX E 1-250 ZX E 1 -315 ZX E 1-400 ZX E 1-500
Power Source Voltage (V)440 440 440 440
Rated I/P Capacity (KVA) 18.523.5 32 38
No-load Voltage (V) 72 76 76 76
Rated Welding Current (A) 250
315 400 500
Current Regulation Range (A) 40-250
50-315 60-400 80-500
Rated Duty Cycle (%) 35 3535 35
Diameter of Rod (cm) 2-5 2-63.2-8 3.2-8
Features: AC/DC, 3 Phase, Wheel, Fan Cooled, Lifting Hooks, MMA.
|

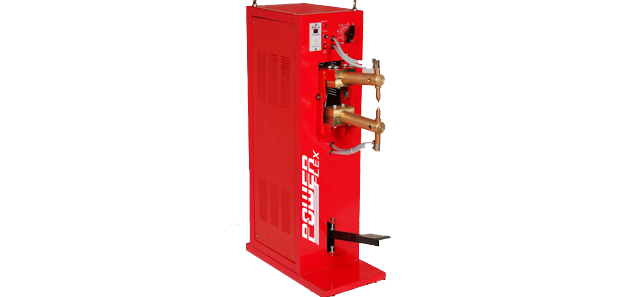

DC SPOT WELDING MACHINE
Product Type DN-10 DN-16 DN-25
Power Source Voltage (V)440 440 440
Rated I/P Capacity (KVA) 10 16 25
No-load Voltage (V) 1.0-2.0 1.2-2.4 1.75-3.52
Welding Thickness (mm) 0.5-2
0.5-3 0.5-4
Length Of Electrode 200
250 250
Timed Range 0.9.95 0.9.950.9.95
Features: Resistance Welding, AC, 3 Phase, Welding Timer, Welding Hooks.
|

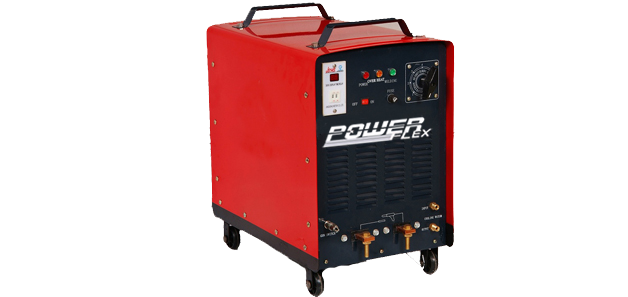

DC MOVEABLE SPOT WELDING MACHINE
Product Type DNJ-10 DNJ-16 DNJ-25
Power Source Voltage (V)440 440 440
Rated I/P Capacity (KVA) 10 16 25
No-load Voltage (V)2.5-4 4.5-9 5.5-12
Welding Thickness (mm) 0.3-0.6
0.5-2 1.0-3.0
Timed Range 0.9.95 0.9.950.9.95
Features:AC, 3 Phase, Wheel, Welding Timer, Lifting Hooks, Welding Accessories, Resistance Welding.
|

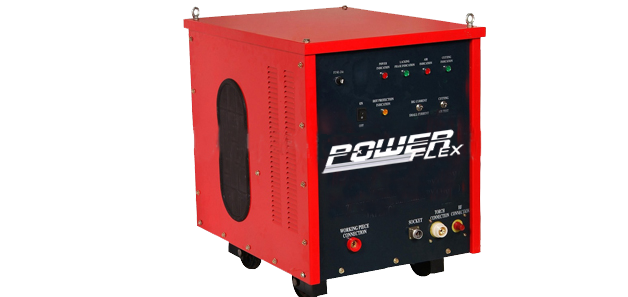

AIR PLASMA CUTTING MACHINE
Product type LGK-63LGK-100
Power Source Voltage (V) 3~440 3~440
Rated I/p Capacity (KVA) 17 30
Noload Voltage (V) 260260
Input(A) 26 42.5
Cutting thicknes(mm) 2030
Rated Duty cycle(%) 60 60
Features: DC, 3 Phase, Fan cooled, Wheel Gas Reducer, Welding Accessories, Lifting Hooks.
|

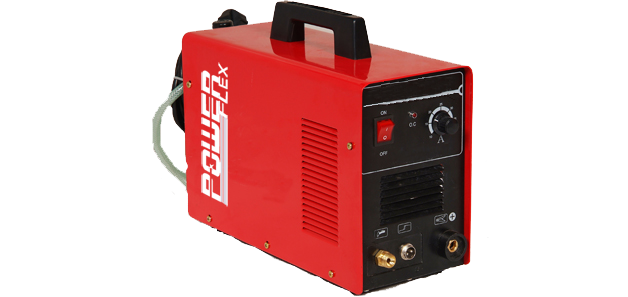

AIR PLASMA CUTTING MACHINE
Product type CUT-40
Power Source Voltage (V) 3~440
Rated I/p Capacity (KVA) 11
Noload Voltage (V) 250
Input(A) 17
Cutting thicknes(mm) 15
Rated Duty cycle(%) 60
Features: DC, 3 Phase, Fan cooled, Wheel Gas Reducer, Welding Accessories, Lifting Hooks.
|

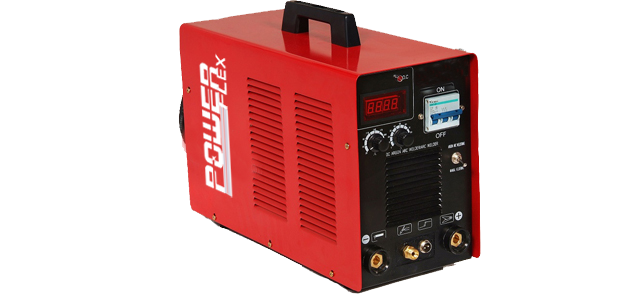

ARGON (TIG) WELDING MACHINE [1 PHASE]
Product Type WSM-160 WSM-180WSM-200WSM-250
Power Source Voltage (V) 220 220220250
Rated I/p Capacity (KVA) 3.2 3.94.521.6
Noload Voltage (V) 56 565656
Current Regulation Range (A) 20-16020-18020-20020-250
Rated Duty Cycle (%) 60 606060
Current of MMA 10-140 10-16010-18010-230
Rod Diameter (cm) 2 - 3.2 2 - 3.22.5 - 3.22.5 - 4
Welding Thickness (mm) 0.3 - 5 0.3 - 80.3 - 100.3 - 12
Features: 1 Phase, Fan Cooled, DC, Welding Accessories, High Frequency Start, Portable.
|

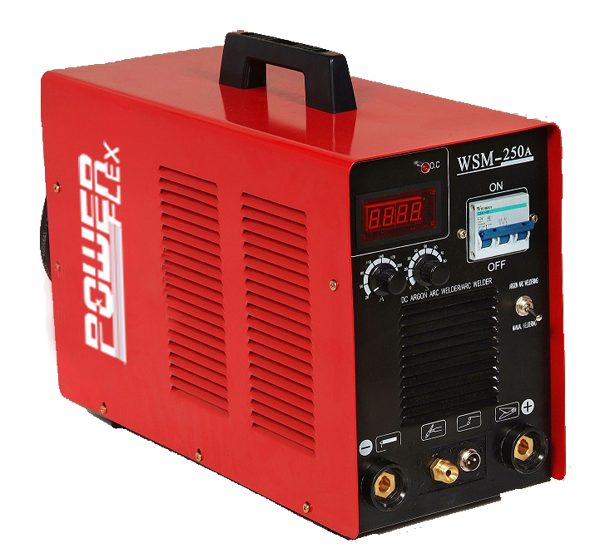

ARGON (TIG) WELDING MACHINE [1 PHASE]
Product Type WSM-250
Power Source Voltage (V) 250
Rated I/p Capacity (KVA) 21.6
Noload Voltage (V) 56
Current Regulation Range (A) 20-250
Rated Duty Cycle (%) 60
Current of MMA 10-230
Rod Diameter (cm) 2.5 - 4
Welding Thickness (mm) 0.3 - 12
Features: 1 Phase, Fan Cooled, DC, Welding Accessories, High Frequency Start, Portable.
|

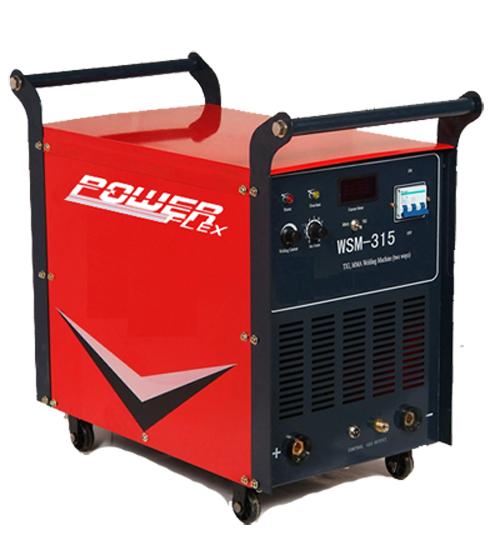

ARGON (TIG) WELDING MACHINE [1 PHASE]
Product Type WSM-315 WSM-400
Power Source Voltage (V) 3~440 3~440
Rated I/p Capacity (KVA) 12 16
Noload Voltage (V) 70 70
Current Regulation Range (A) 20-31520-400
Rated Welding Current (A) 315 400
Rated Duty Cycle (%) 60 60
Features: 3 Phase, Fan Cooled, DC, Welding Accessories.
|

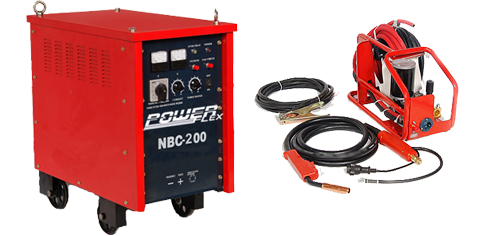

CO2 GAS SHIELDED [MIG-MAG] WELDING MACHINE
Product Type NBC-200 NBC-250NBC-300
Power Source Voltage (V) 440 440440
Rated I/P Capacity (KVA) 6.910.513.2
No-load Voltage (V) 19-3418-44.518-44.5
Rated Welding Current (A) 200 250300
Current Regulation Range (A) 35-200 35-25035-300
Rated Duty Cycle (%) 60 6060
Rod Diameter (cm) 0.8-1.0 0.8-1.00.8-1.2
Features: DC, 3 Phase, Wire Regulator, Fan Cooled, Lifting Hooks, Wheels, Gas Reducer.
|
.png)

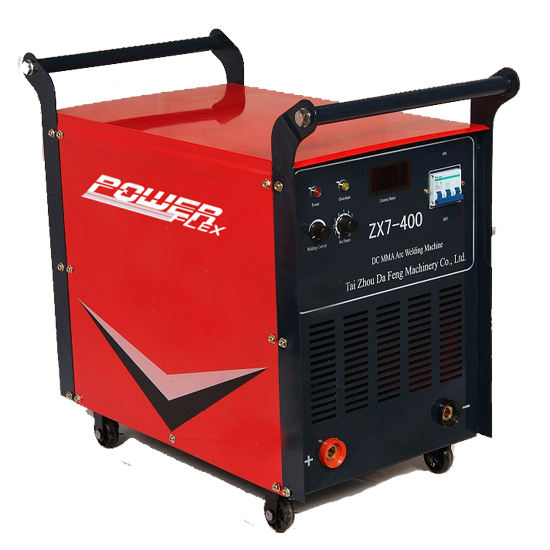

INVERTER IGBT WELDING MACHINE
Product Type ZX7-315 ZX7-400
Power Source Voltage (V) 440 440<
Rated I/P Capacity (KVA) 12.818
No-load Voltage (V) 7070
Rated Welding Current (A) 315 400
Current Regulation Range (A) 20-315 20-400
Ref. Welding Electrode (mm) '2-6 3.2-8
|
.png)

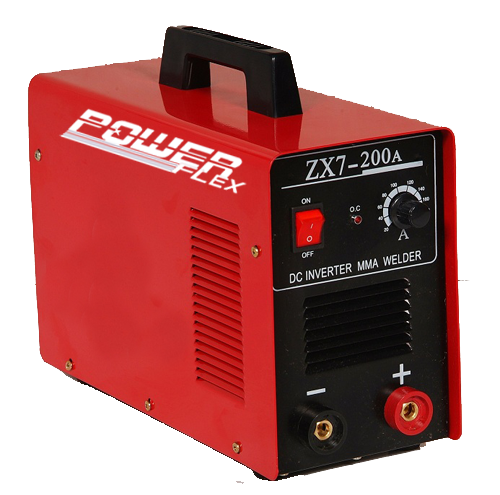

INVERTER IGBT WELDING MACHINE
Product Type ZX7-160 ZX7-180ZX7-200
Power Source Voltage (V) 220 220220
Rated I/P Capacity (KVA) 5.36.57
No-load Voltage (V) 626262
Rated Welding Current (A) 160 180200
Current Regulation Range (A) 30-160 30-16030-160
Ref. Welding Electrode (mm) 1.6-3.2 1.6-3.21.6-4
|

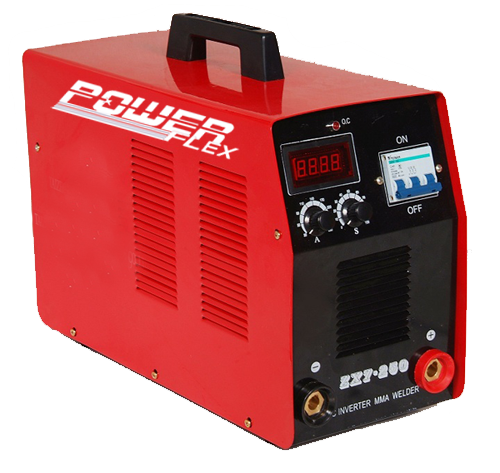

INVERTER IGBT WELDING MACHINE
Product Type ZX7-250
Power Source Voltage (V) 380
Rated I/P Capacity (KVA) 9
No-load Voltage (V) 75
Rated Welding Current (A) 250
Current Regulation Range (A) 30-250
Ref. Welding Electrode (mm) 1.6-4
|

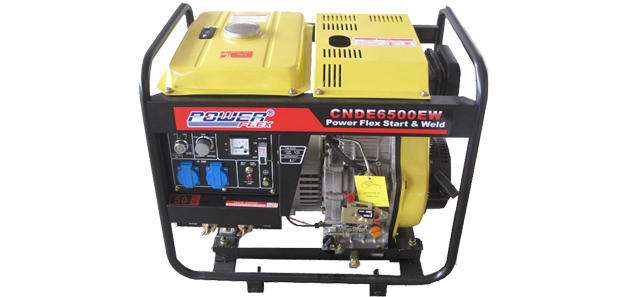

DIESEL WELDING GENERATOR
Model no WG-200
Engine Type Single Cylinder, 4-Stroke, Air Cooled, Direct Injection, Diesel Engine
Rated Power(KW / HP) 6.5/8.85
Rated Welding Current (Amps) 200
Welding Work Voltage (V) 25-30
Welding Load Conti. Ratio 50%
Current Regulation Range (Amps) 80-200
Tank Capacity (Lts.) 15
Lube Capacity (Lts.) 1.65
|

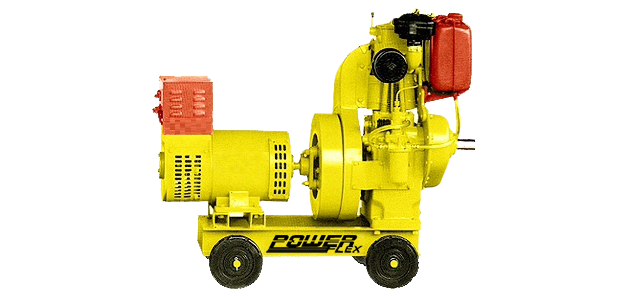

DIESEL WELDING GENERATOR
Model no WG-I 400
Engine Type Single Cylinder, 4-Stroke, Air Cooled
Direct Injection,Diesel Engine
Rated Welding Current (Amps) 400
Current Regulation Range (Amps) 80-400
|
|
|
|
