Construction Equipment

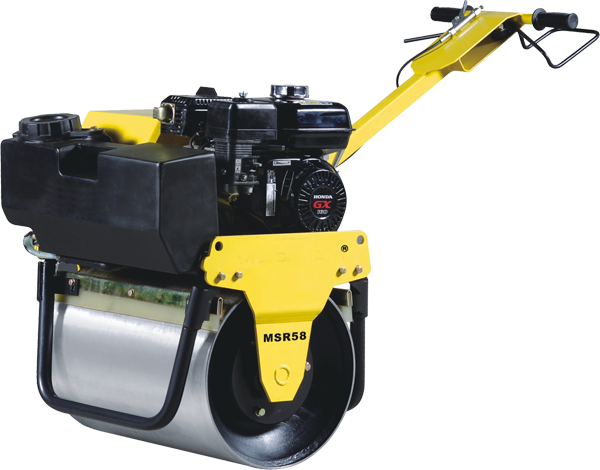

Walk Behind Roller - Single Drum

Engine Type

Honda GX160

Power (HP)

5.5

Weight (Kg)

185

Drum Dia. (mm)

580 x 400

Static Linear Force (N/cm)

10

Centrifugal Force (kN)

28.5

Frequency (VPM)

4560

Travel Speed (Km/Hr)

0-1.5

Water Tank (Lts.)

15

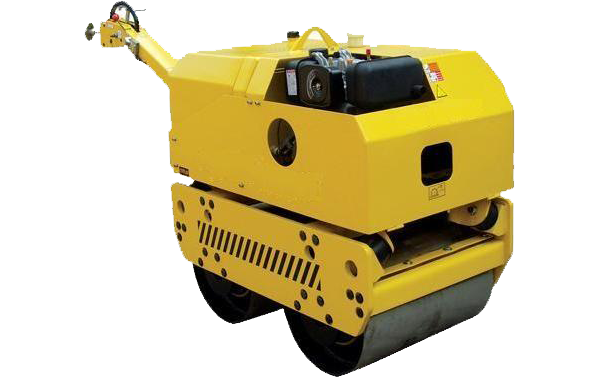

DOUBLE DRUM VIBRATORY ROLLER

Model

CNYL62

Engine Type

Single-Cylinder,4-Stroke,Air-Cooled,Diesel-Engine

Engine Model

178EE

Operating Power kw(Hp)

4(6.0)@3600rpm

Battery

12VDC

Start Type

Electric Start

Block Size [L x W x H (mm)]

1415 x 720 x 1750

Working Size [L x W x H (mm)]

2340 x 720 x 1058

Roller Size(mm)

ψ400 x 600

Operating Weight [Kg(Ibs.)]

632(1390)

Area capacity m2(ft.2)/hr.

2400(25920)

Vibrating Dutch Method

Electromagnetic

Forword Speed(max)km/h(mph)

0-4(0-2.5)

Reverse Speed(max)km/h(mph)

0-2(0-1.2)

Centrifugal Force KN

12

Vibration frequency Hz(vpm)

45(3000)

Water Spraying Method

Electromagnetic vale

Water Tank CapacityI(gal.)

100(26.4)

Hydraulic System CapacityI(gal.)

2.55(0.67)

Gradeability with vibration %

25

Gradeability without vibration %

35

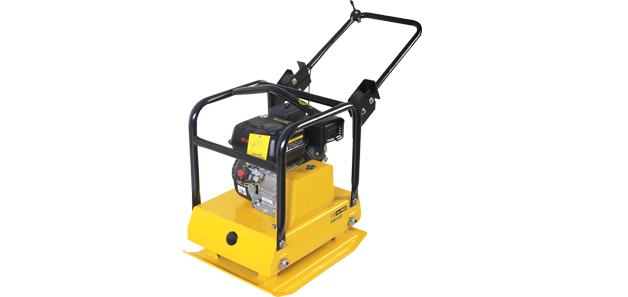

EARTH COMPACTOR

Engine

Robin EY20, Air Cooled,
4-Stroke, Single Cylinder

Power: HP

5.0

Power:KW

3.7

Frequency (VPM)

4200

Centrifugal Force (KN)

20

Compacting Depth (cm)

40

Plate Size (cm)

62 x 45

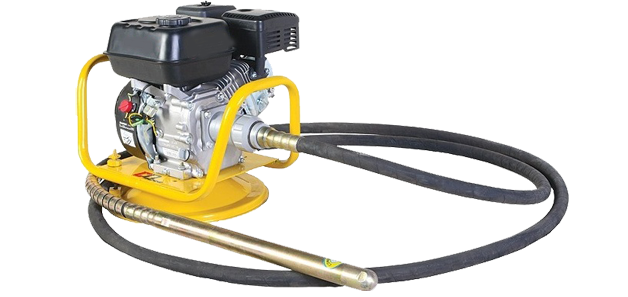

NEEDLE VIBRATOR

Type

Power

H.P.

Vol/strokes

RPM

NV1

Petrol / Kerosene

1.5

2 stroke

3000

Needle

Type

Dimension

Shaft length

Hose Length(M)

UN 25

25

600mm

6/4

UN 40

40

600mm

6/4

UN 60

60

600mm

6/4

Phase (Ø)

1

Speed (RPM)

950

Pressure: BAR

8

PSI

115

Capacity:CFM

8

L/Min

250

Phase (Ø)

1

Speed (RPM)

950

Pressure: BAR

8

PSI

115

Capacity:CFM

10.6

L/Min

300

Phase (Ø)

1

Speed (RPM)

950

Pressure: BAR

8

PSI

115

Capacity:CFM

10.6

L/Min

300

Phase (Ø)

3

Speed (RPM)

860

Pressure:BAR

12.5

PSI

178

Capacity: CFM

22.5

L/Min

630

Phase (Ø)

3

Speed (RPM)

1060

Pressure:BAR

8

PSI

115

Capacity: CFM

31.8

L/Min

900

Phase (Ø)

3

Speed (RPM)

1060

Pressure:BAR

8

PSI

115

Capacity: CFM

31.8

L/Min

900

Phase (Ø)

3

Speed (RPM)

780

Pressure:BAR

12.5

PSI

178

Capacity: CFM

37.5

L/Min

1050

Output / Hr (M3)

30

No. of Aggregate Storage Bins (Nos.)

2 / 3 / 4

Vibrator In Sand Compartment (Nos.)

1

Mixer Unit Type

Twin Shaft Mixer

Capacity / Batch (Ltrs.)

500

Line Plate

Anti-Wearing Material, Changeable

Load Cells for Cement (Nos.)

3

Load Cells for Additive (Nos.)

1

Load Cells for Water (Nos.)

3

Vibrator In Cement Weighing (Nos.)

1

Max. Aggregate Size (mm)

60

Air Compressor (M3/Min)

0.36

Fully Auto Control Panel

Provided

Discharge Height (M)

3.8

Connected Load Standard Plant - 4 Bins (HP)

70

Phase (Ø)

3

Speed (RPM)

790

Pressure:BAR

8

PSI

115

Capacity: CFM

57.1

L/Min

1600

Phase (Ø)

3

Speed (RPM)

820

Pressure:BAR

8

PSI

115

Capacity: CFM

92.8

L/Min

2600

Phase (Ø)

1

Speed (RPM)

950

Pressure:BAR

8

PSI

115

Capacity: CFM

8

L/Min

250

Phase (Ø)

1

Speed (RPM)

950

Pressure:BAR

8

PSI

115

Capacity: CFM

8

L/Min

250

Phase (Ø)

1

Speed (RPM)

950

Pressure:BAR

8

PSI

115

Capacity: CFM

8

L/Min

250

Phase (Ø)

1

Speed (RPM)

950

Pressure:BAR

8

PSI

115

Capacity: CFM

8

L/Min

250

VIBRATORY ROLLER

SINGLE DRUM

DOUBLE DRUM

EARTH COMPACTOR

EARTH COMPACTOR

NEEDLE VIBRATOR

NEEDLE VIBRATOR
