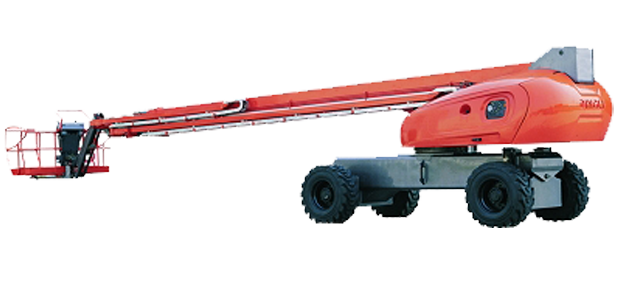

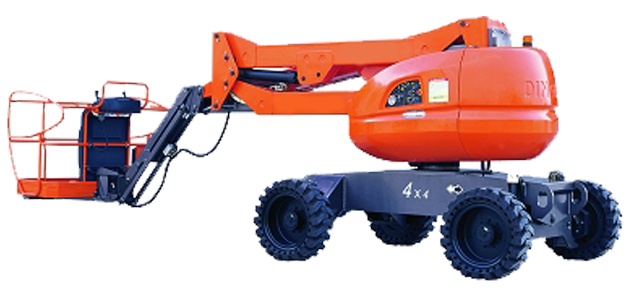

S. W. L
230 Kg
Working Height
42.00 m
Platfrom floor Height
40.00 m
Max. Horizontal reach
24.20 m
Turntable ailswing
Axle retracted
1.86 m
Turntable tailswing
Axle Extended
1.24 m
Below ground reach
3 m
Overall Length
14.25 m
Overall Length (transport position)
12.17 m
Overall width Axle retracted
2.49 m
Overall width Axle Extended
3.80 m
Overall Height
3.07 m
Platform Size
2.40 X 0.90 m
Ground clearance
0.32 m
Whelbase
3.80 m
Turning Radious Axle retracted
Inside/Outside
4.50/6.85m
Turning Radious Axle Extended
Inside/Outside
2.50/5.95m
Turret rotation
360° continuous
Platform rotation
160°
Jib movement
130° (+70° / -60°)
Engine Perkins 804-33T
62 kw/3000 rpm
Engine Kubota V3800-DI-T
61.6 kw/2200 rpm
Travel speed Stowed
4.8 km/h
Raised or extended below 80 ft
1.1 km/h
Raised or extended above 80 ft
0.5 km/h
Gradeability (stowed)
40 %
Maximum Slope
5°
Hydraculic tank
208 L
Diesel tank
151 L
Tyres (solid)
445/65 D22.5
Weight
20560 kg
