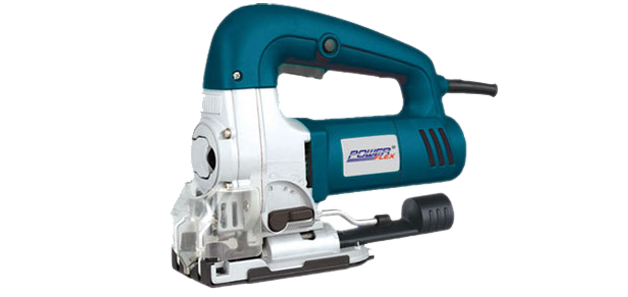

JIG SAW
Model no JS 10
Cutting: Wood 130mm
Steel 10mm
Cutting Angle -45° to +45°
Rated Voltage 230v
Frequency 50/60Hz
No Load Speed 500-2500 RPM
Rated Input Power 600W
Net Weight 3.0 Kg
|

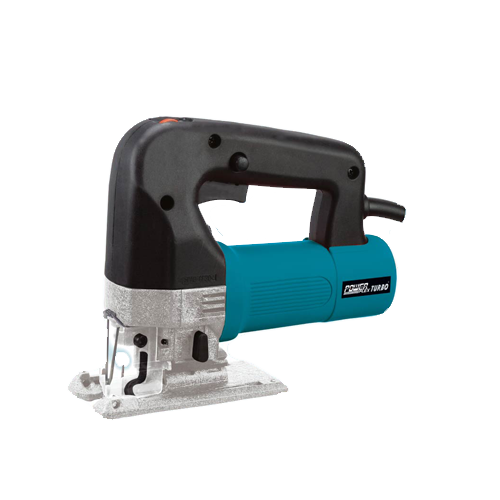

JIG SAW
Model no JST-60
Cutting: Wood 60mm
Steel 10mm
Cutting Angle '-45o to +45o
Rated Voltage 230V
Frequency 50/60Hz
No Load Speed 500-3000 RPM
Rated Input Power 500W
Net Weight 3.45 Kg
|

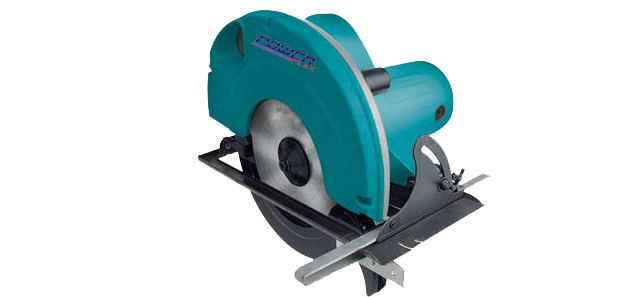

CIRCULAR SAW
Model no CST-235
Blade Dia 235mm
Rated Voltage 220-220V˜
Rated Frequency 50/60Hz
No Load Speed 4200 RPM
Rated Input Power 2000W
Net Weight 8.5 Kg
|

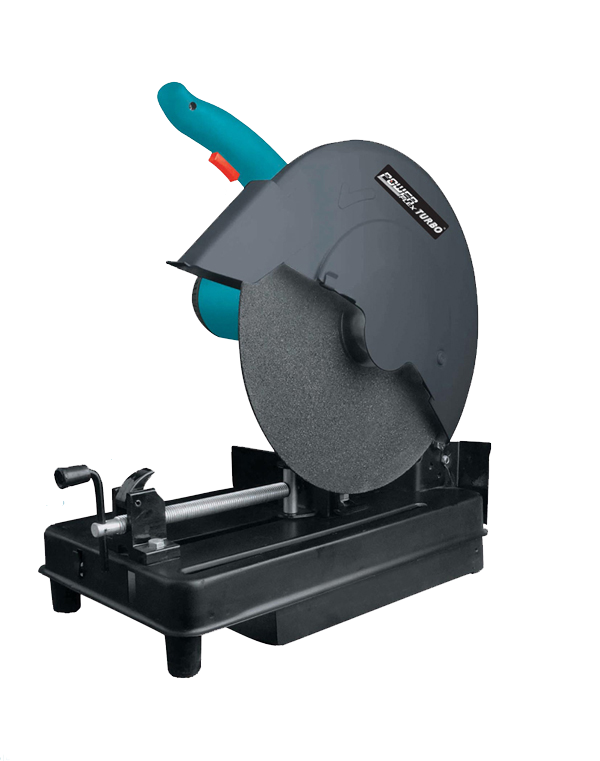

CUT OFF SAW
Model no CHS-355
Disc Dia 355mm
Rated Voltage 220-240V
Rated Frequency 50/60Hz
No Load Speed 3800 RPM
Rated Input Power 2200W
Net Weight 15.9 Kg
|

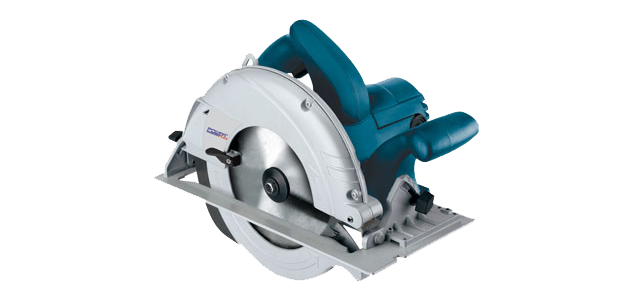

CIRCULAR SAW
Model no CS 235
Disc Dia 235mm
Cutting Capacity @ 90° - 34mm,
@ 45° - 21mm
Rated Voltage 230v
Frequency 50/60Hz
No Load Speed 13000RPM
Rated Input Power 1300w
Net Weight 3.4Kg
|

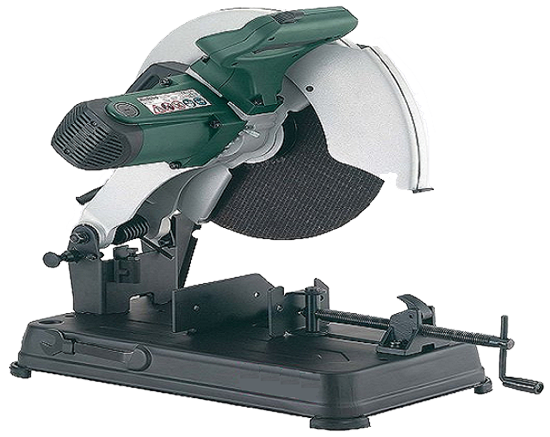

CUT OFF SAW
Model no COS 355
Rated Voltage 220-240 V
Frequency 50-60 Hz
Input Power 2300 W
Rated Speed 3800 RPM
Disc Diameter 355mm
Cutting Capacity 115mm
Net Weight 17.5 Kg
|

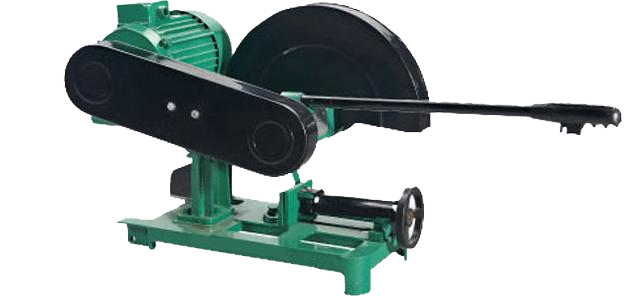

CUT OFF SAW
Model no PF (3PH) PF (1PH)
Motor (KW) 3 2.2
Voltage (V) 380 220
Frequency (Hz) 50 50
No-Load Speed (RPM) 2800 2800
Diameter (Ø50U) 120 x 53 120 x 53
Tongs Angle ±45° ±45°
Maxo (mm) 135 x 6 135 x 6
Grinding (mm) 400 x 3.2 x 32 400 x 3.2 x 32
N.W (Kgs) 65 55
|

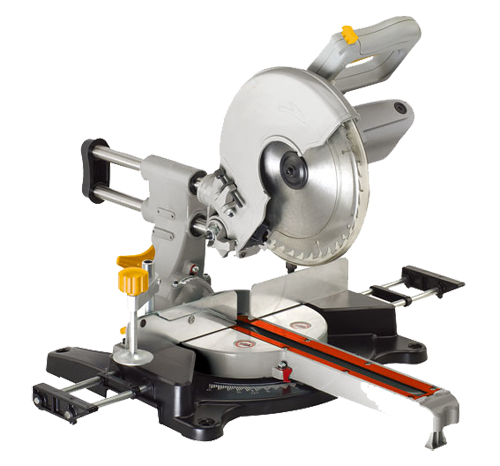

MITRE SAW
Model no MS 305
Saw Blade Dia 305mm
Cutting Depth (H x W) 90°: 102mm * 330mm
60°: 60mm * 160mm
45°: 60mm * 220mm
Rated Voltage 220-240 V
Frequency 50-60 Hz
Input Power 2100W
No Load Speed 4000 RPM
Net Weight 29.5 Kgs
|

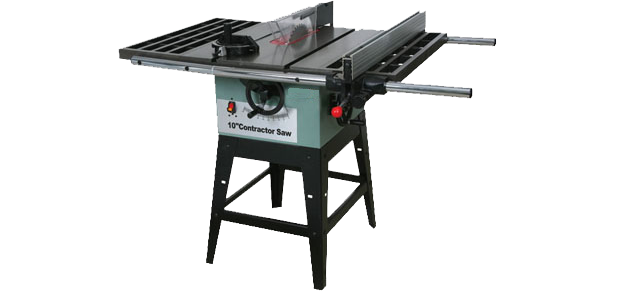

TABLE SAW
Model no TS 12
Motor Power 2200W
Cuting Thickness 105mm @ 0° , 70mm @ 45°
Blade Angle 0 ~ 45°
Speed 4560 rpm
Table Dimension 1030 x 685mm
Blade Size 305mm
|

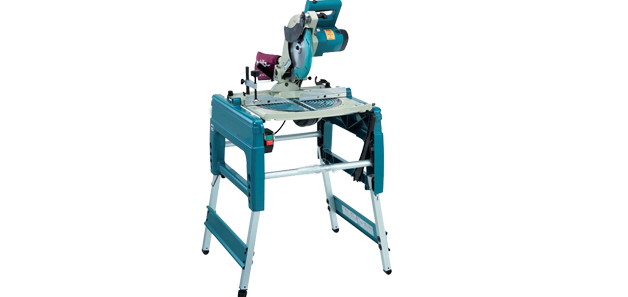

FLIPOVER SAW
Model no FS 305
Saw Blade Dia 305mm
Cutting Depth (H x W) 90°: 80mm * 140mm
45°: 40mm * 140mm
Rated Voltage 220-240 V
Frequency 50-60 Hz
Input Power 2100W
No Load Speed 4100 RPM
Net Weight 20.5 Kgs
|

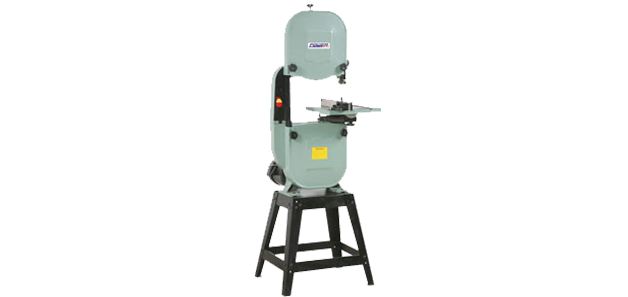

BAND SAW
Model no BS 14 BS 450
Motor Power 750W 500w
Throat
350mm 115mm
Cutting Depth
152 100 x 150mm
Speed Change
2 3
Speed
510-710rpm 1380rpm
Table Angle
0-45° 0~45o
Tabel Size
350x350mm 50-60 Hz
Blade Size
2375 x 10 x 0.6mm 1638 x 12.7 x 0.65mm
|
JIG SAW
Motor Power 1800W
Magnetic Adhesion 11000N
Core Drill 12-50mm
Twist Drill 32mm
Spindle Taper MT3
Speed 200 - 400 RPM, 300 - 600 RPM
Net Weight 35Kgs
|
|
|
|
