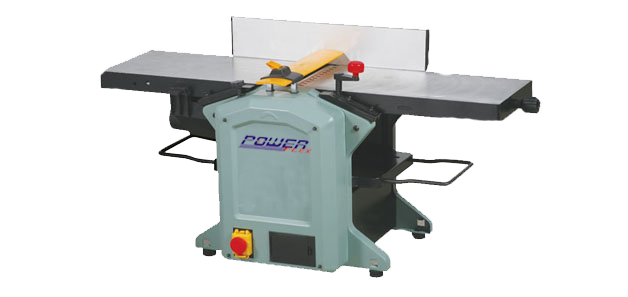

JOINTER-PLANNER
Model no
JP 12
Motor Power
1800W
Stock Width
12"
Stock Thickness
2mm
Cutting Depth for Planer
6 - 158mm
No. of Blades
2
Speed
8500 rpm
Fence
610 x 122mm
Fence Angle
90° ~ 135°
Dust Chute Dia.
Ø100
Table Dimensions
1075 x 310mm
JOINTER-PLANNER
Model no
WL 1000
Motor Power
550W
Swing
350mm
Centre Height
175mm
Working Length
1000mm
Disc Dia
204mm
Speed Change
3
Spindle Speed
750~2600 rpm , 890~3050 rpm

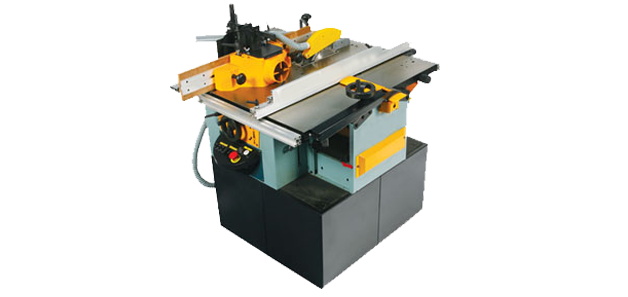

MULTIFUNCTION MACHINE
Rated Voltage
220-240 V
Frequency
50-60 Hz
Input Power
2300 W
Rated Speed
3800 RPM
Disc Diameter
355mm
Cutting Capacity
115mm
Net Weight
17.5 Kg
3PH
1PH
Motor (KW)
3
2.2
Voltage (V)
380
220
Frequency (Hz)
50
50
No-Load Speed (RPM)
2800
2800
Diameter (Ø50U)
120 x 53
120 x 53
Tongs Angle
±45°
±45°
Maxo (mm)
135 x 6
135 x 6
Grinding (mm)
400 x 3.2 x 32
400 x 3.2 x 32
N.W (Kgs) 65
65
55

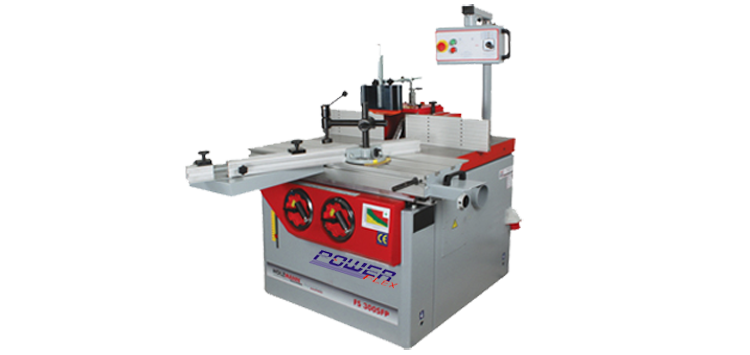

SPINDLE MOULDER
Model no
SM 30
Spindle Speed (RPM)
1800-9000
Work Table (mm)
640 x 1000
Motor (W)
2800
Power (HP)
3.75
Spindle Dia. (mm)
30
Spindle Travel (mm)
100
Tilt
'-50 To +300
Max Tool Size (mm)
200
Weight (Kgs)
110
Motor Power
1800W
Magnetic Adhesion
11000N
Core Drill
12-50mm
Twist Drill
32mm
Spindle Taper
MT3
Speed
200 - 400 RPM, 300 - 600 RPM
Net Weight
35Kgs
JOINTER-PLANNER
JP 12

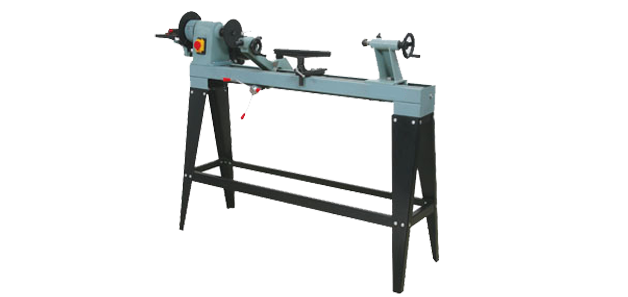

WOOD LATHE
WL 1000
MULTIFUNCTION MACHINE
MFM 750
SPINDLE MOULDER
SM 30
